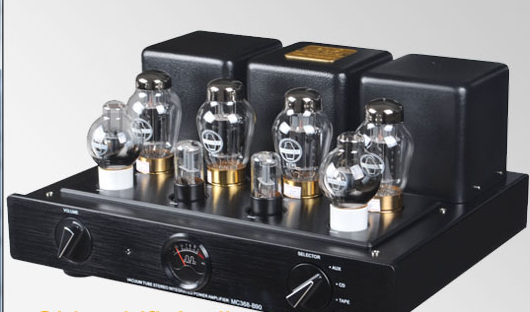

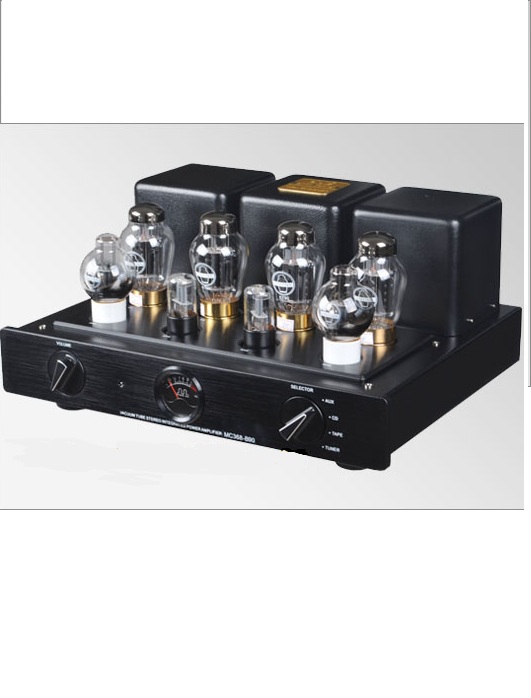

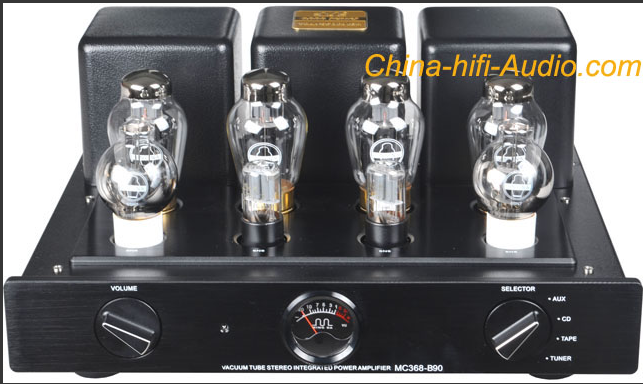

Ming Da MC 368-B90

R32,000.00

Serious upgraded model to the famous MC-368B
Special version using Onion shape 6SN7 vacuum tubes
Specially made MingDa KT90 high end output vacuum tubes
Heavy weight Stainless steel and alloy plate construction
Custom built audio and power transformers using:
Zll and H18 long grain annealed and directed steel sheets
Hand built with alll hand welding internal connections
USA made Teflon silver cable for audio signal paths
A lively stage experience plus great dynamics
High-end parts – Philips, Panasonic capacitors, USA made resistors
KT90 Vacuum tubes exceeds KT88 in dynamics and control power
High class ALPS volume control from Japan
Pentode mode and Triode mode selectable for different sonic feelings
Gold plated speaker out terminals
Remote control function
Detachable power cord system

Description

Specifications:
Output Power: 75W × 2(Ultralinear), 40W *2 (Triode)
Input voltage: 200mv
Output Impedance: 4Ω, 8Ω
Distortion: ≤1%
Input Impedance: 100K
Power consumption: 250W
SNR: 88dB
Output: 2 groups
Input: 4 groups
Frequency response: 18Hz-55KHz ± 1dB
Amplifier tubes: KT90 (special) × 4 6SN7 (special) × 2; 6N8 × 2 (If you wish, you can choose KT88 (Meixing special) * 4)
Weight: 28Kg
Gross weight: 32Kg
Volume of amplifier: L46 × W38 × H24 (cm)
Packing volume: L58 × W52 × H40 (cm)
