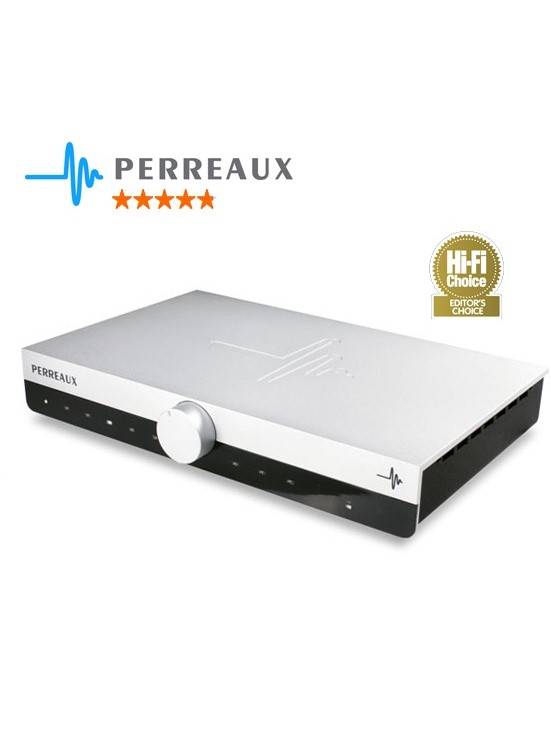

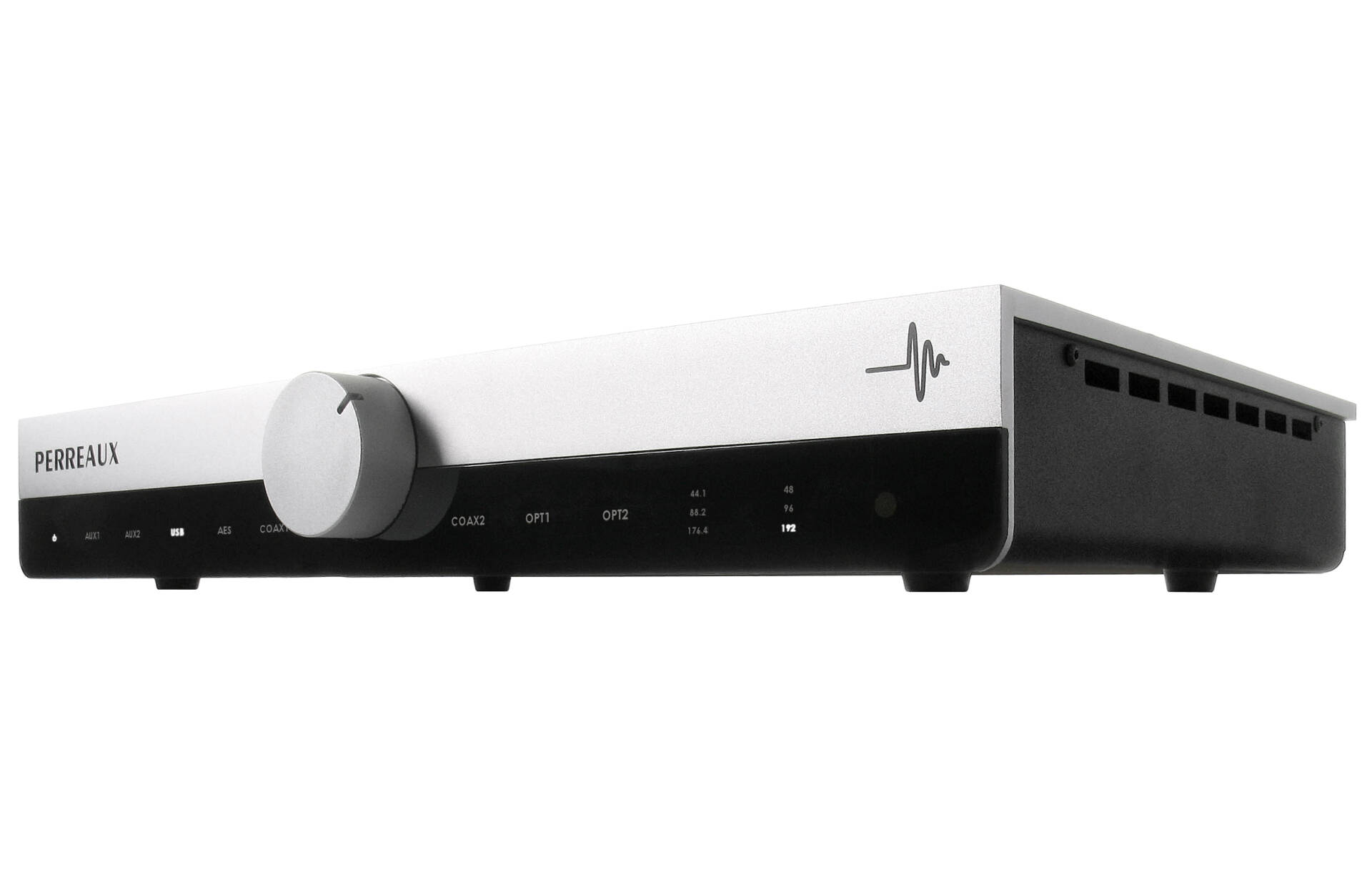

Perreaux DP32 DAC/Pre-Amplifier

R22,000.00



Description

  • TECHNICAL SPECS:

    Digital Audio Section

    Digital Inputs:  1 USB (asynchronous 24/192) 1 AES/EBU (XLR) 2 Coaxial (SPDIF) 2 Optical (Toslink)

    Digital Input Impedance:
    AES/EBU 110Ω
    Coaxial 75Ω

    Digital to Analogue Converter:  ESS Technology Sabre³² Reference ES9018 32-bit DAC

    Input Word Length (maximum):  24-bit (AES/EBU, Coaxial, Optical) 24-bit (USB)

    Input Sample Rate (maximum):  192kHz (all inputs)

    DAC Output Voltage:  2.0Vrms @ 0dBFS

    Total Correlated Jitter:  (all sample rates)

    _________________________________________

    Preamplifier Section

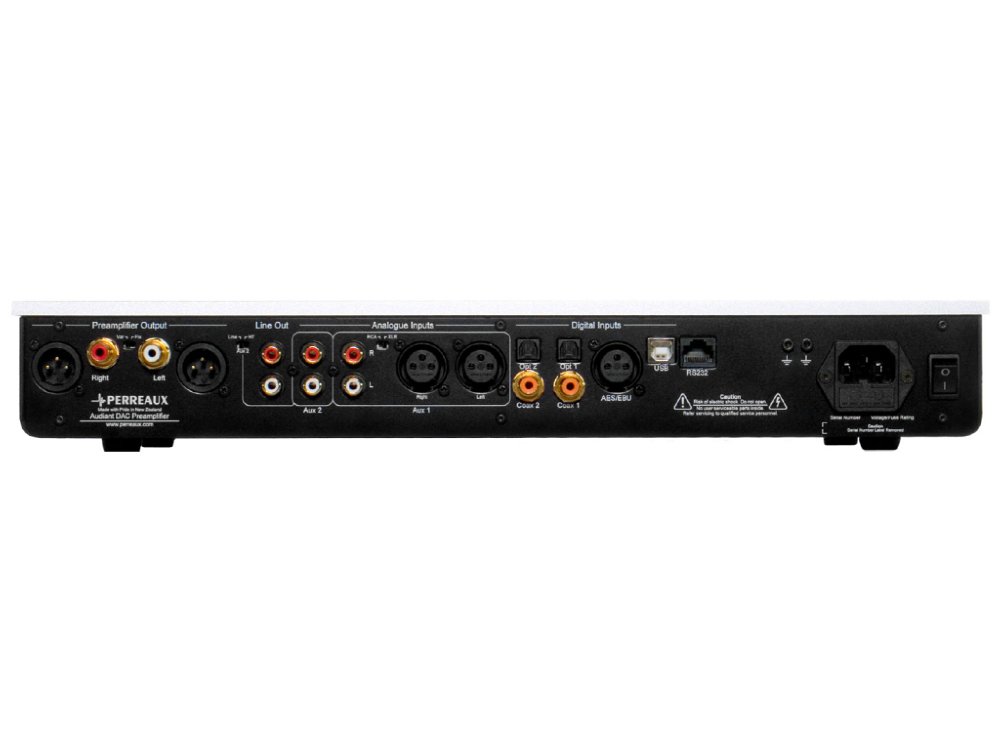

    Analogue Inputs:  1 Balanced XLR /Unbalanced RCA pair (selectable)
    1 Unbalanced RCA Line/Home Theatre pair (selectable)

    Analogue Input Impedance:
    Balanced:  20kΩ
    Unbalanced:  47kΩ

    Analogue Pre Outputs:  1 Balanced pair (XLR)
    1 Unbalanced pair (RCA)

    Analogue Line Outputs: 1 Unbalanced pair (RCA)

    Volume Control Bypass:  Yes (selectable)

    Volume Control Range:
    Analogue Inputs

    Balanced XLR  -105.0dB to 0.0dB
    Unbalanced RCA  -100.0dB to +6.0dB
    Digital Inputs  -105.0dB to 0.0dB

    Maximum Output Voltage:  12.0Vrms

    Analogue Output Impedance:
    Balanced XLR  100Ω
    Unbalanced RCA  50Ω



    Total Harmonic Distortion (THD+N):
    Typically   0.0005% @ 1kHz
    20Hz to 20kHz  better than 0.001%

    Frequency Response:
    20Hz to 20kHz     ±0.05dB

    Signal to Noise:  140dB, ref. 2Vrms (unweighted)
    Dynamic Range:  140dB @ -60dB, ref. 2Vrms (unweighted)

    Channel Separation:
    20Hz to 20kHz   better than 115dB, ref. 2Vrms

    _______________________________________

    Dimensions

    Width:  431mm (17.0″)
    Depth:  305mm (12.0″)
    Height:  67mm (2.6″)
    Weight:  8.0kg (17.6lb)
